Lenovo Thinkpad Ultra Dock 40Aj

lenovo  ThinkPad Ultra Dock 40AJ

Compatible with ThinkPad's T480, T480s, T490, T490s, T580, L480, T14,  X1 Carbon 6th gen, 7th gen and 8th Gen

Refurbished with 1 year warranty

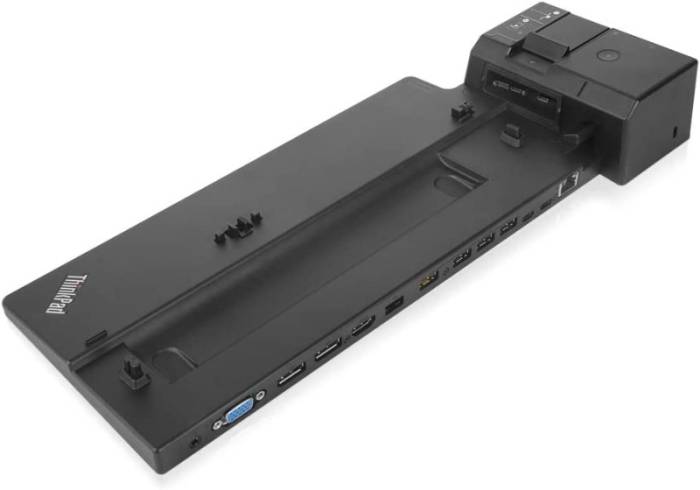

Lenovo ThinkPad Ultra Docking Station

The ThinkPad Ultra Docking Station provides better docking experience for large enterprise ThinkPad customers. The innovative side connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays. Its rapid charging support and mirrored power button make it easy to unlock and go.
The ThinkPad Ultra Docking Station is built for today's demanding office work, too, delivering 10 Gbps data transfer through four USB 3.1 ports. Connect up to three UHD displays for maximum productivity gains. Designed for enterprise environments, ThinkPad Ultra Docking Stations support PXE book, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly designed, ThinkPad Ultra Docks provide seamless docking in a minimized form factor.

Features & Benefits

Enterprise-class universal docking for 2018 T, L, X, and X1 Series ThinkPad notebooks
Innovative side connector minimizes desk space
Intel vPro, PXE boot, Wake-on LAN, and MAC address pass-through
Supports ThinkPad RapidCharge
Mirrored power button and mechanical unlock
Optional master key lock
Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual data transfer rate will be slower than 5 Gbit/s on USB 3.1 Gen 1 (USB 3.0) connectors, slower than 10 Gbit/s on USB 3.1 Gen 2 connectors, and slower than 20Gbit/s on USB 3.2 connectors.
The ultimate 90W docking solution,

Packed Physical Specification

Approximate Length: 422 mm (16.61 in)
Approximate width: 200 mm (7.87 in)
Approximate height: 86 mm (3.39 in)
Approximate weight: 2.0 kg (4.4 lbs)
Unpacked Physical Specification

Approximate Length: 378 mm (14.88 in)
Approximate width: 159 mm (6.26 in)
Approximate height: 54 mm (2.13 in)
Approximate weight: 0.8 kg (1.8 lbs)

Ports, Connectors, Security

Four - USB 3.1 gen2 (10Gbps) with 1* always-on USB charging
Two - USB-C ports (10Gbps, 5V 3A power)
10/1000 Gigabit Ethernet
Two DisplayPort 1.4
HDMI 2.0
VGA
Stereo/Mic Combo Audio Port
DC-IN
Kensington® Lock Slot

Monitor Resolutions and Refresh Rates

DisplayPort port: 4096*2160@60Hz
HDMI port: 4096*2160@60Hz
VGA port: 2048*1536@85Hz

Power

ThinkPad 135W AC adapter (Slim tip) (INCLUDED)

Part Numbers
