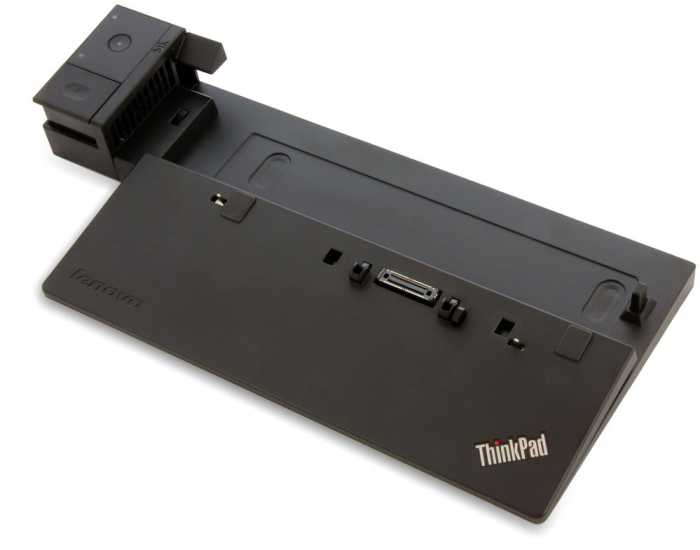

Lenovo Thinkpad Ultra Dock 40A1

lenovoThinkPad Ultra Dock 90W

Compatible with ThinkPads T440, T440s, T450, T450s, T460, T440p, T540p, x240, x250, x260,

Compatible with : (W540 & W541 - 130W AC Needed)

Type: 40A1, FRU PN: 00HM918

The completely re-designed ThinkPad 90W Ultra Dock comes with an included ThinkPad 90W AC Adapter and grows your capability without having grown in size. The ultimate 90W docking solution, the ThinkPad Ultra Dock includes a wide range of video outputs and support for multiple external monitors, so you can multi-task like never before.Note: *ThinkPad Ultra dock is capable to support up to 4k2k(3840x2160)@60Hz via either 1 of 2 DP ports, or support dual 4k2k@30Hz via 2 DP ports. Actual video output on the dock is based on system video performance since the video signal is passing through from system to the Ultra dock. Some of the video ports do have exclusive use and are also dependent on the docked ThinkPad configuration. (also Compatible W540 & W541 extra 130W AC Needed)

Refurbished Grade A with 1 year warranty

(also Compatible W540 & W541 extra 130W AC Needed)

Type: 40A1

FRU PN: 00HM918

The ultimate 90W docking solution,

The ThinkPad Ultra Dock includes a wide range of video outputs and support for multiple external monitors, so you can multi-task like never before. It comes with 3x USB 2.0 ports, one which supports always-on USB charging for mobile devices. Therefore, you can charge your tablet or mobile using the dock without your ThinkPad being present. The dock is equipped with 3x USB 3.0 ports for connecting hard drives and other external storage. This ThinkPad docking station also support 10/1000 Gigabit Ethernet connection and comes with 2x DisplayPort 1.2, 1x DVI-D and 1x VGA port. The dock comes with a 90W AC adapter which powers both docking station and ThinkPad. The dock is driver-free but still delivers delivering crystal clear video quality thanks to Lenovo technology. It also features 1 x Stereo/Mic Combo Audio Port for headphone/speaker/microphone connection.

Features and Benefits:

- 3x USB 2.0, one supports always-on USB charging

- 3x USB 3.0

- 10/1000 Gigabit Ethernet, supports enterprise manageability

- 2x DisplayPort 1.2*

- 1x DVI-D*

- 1x VGA*

- 1x Stereo/Mic Combo Audio Port

- Driver-free, perfect video quality

- Security Lock conveniently secures both your notebook and dock to your desk with a single key

- Physical rear alignment for a perfect dock every time

- Smaller desktop footprint vs. Series 3 docking stations

- Charges your ThinkPad with an included ThinkPad 90W AC Adapter

- Refurbished Grade A

- Part number: 40A20090US

What's in the Box:

The ThinkPad Ultra Dock

ThinkPad 90W AC adapter

Compatibility

 T440. T440s, T440p, t540p, l540, x240, A475, L570, L470, L460, L560, L450, ThinkPad 25, T470p, T470s, T570, T470, T460s, T560, T460, T460p, T550, T450, T450s, P51s, X270, X260, X250 (also Lenovo W540 and W541 needs 130W AC adapter)

Height (US) 2.19 in
Width (US) 13.58 in
Depth (US) 6.40 in
Weight (US) 2.03 lbs

Tech Specs

Max Number of External Monitors 3
Weight 0.92 kg (2.03 lbs)
Refresh Rate DisplayPort 2: 3840 x 2160 @ 30 Hz or DVI: 1920 x 1200 @ 60 Hz; VGA: 1920 x 1200 @ 60Hz;; "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.
AC Plug American Standard Plug Type B
Hardware Requirements ThinkPad Bottom Docking Connector
Warranty Customer Replaceable Unit (CRU)
Output Power 65 W
Brand ThinkPad
OS Requirements Windows 10, Windows 8.1, Windows 8, Windows 7
Agency Approvals AS/NZS S-DOC, BSMI, CB, CE, EU DOC, FCC, GOST, KCC, NOM, sDOC, SEPRO, VCCI
