Key Features: A space-saving port replicator suitable for home and office environment which enables connection to your desk peripherals. Supports hot docking and undocking. Digital Monitor capability.
Dimension (h x d x w): 2.11” x 6.69” x 7.87” (53.7 x 170 x 200 mm)
Weight: 1.72 lb (0.78kg)
Power Supply: 130W External AC Adapter (Dell Latitude)
Video Ports:VGA, Display Port, DVI-D
Ports: USB, Powered eSATA (shared with 1 USB), RJ-45, Audio and Mic, Lock Slot, E-Monitor Stand Connector
Overview

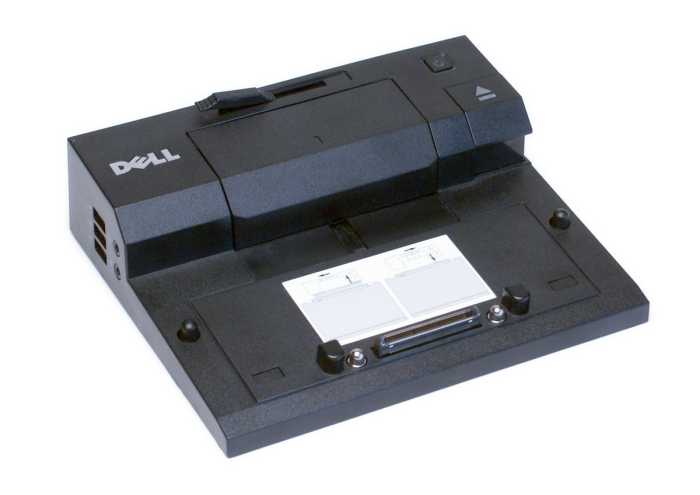

Maximize your workspace with the Dell™ E-Port II Replicator. This E-Port Replicator gives you a comfortable work space where you can plug a keyboard, mouse and monitor to the port replicators and use your laptop like a desktop! Simplified connectivity facilitates a single interface to connect to your printer, monitor or other peripheral devices. This product is tested and validated with Dell Systems. It is supported by Dell Technical Support, when used with a Dell system.
Highlights:
USB 3.0
- Adds new faster USB 3.0 technology enabled by Intel in Ivy Bridge - Replace the 2 USB 2.0 connectors on the back with USB 3.0 - Platform must support USB 3.0 for it to be enabled on dock (otherwise port will support 2.0)
Display Port 1.2
- Adds the ability to daisy chain displays (4 displays via 1 connector) - Only enabled with discrete graphics on current generation of Latitude laptops
No BOIS/SW/HW impact on previous Latitude E-series laptops
Manufacturer Part : MVP71 Dell Part : 452-11429
Compatibility
This product is compatible with the following systems:
Latitude 2120
Latitude E5420
Latitude E5430
Latitude E5440
Latitude E5520
Latitude E5530
Latitude E5540
Latitude E6230
Latitude E6320
Latitude E6330
Latitude E6420
Latitude E6420 XFR
Latitude E6430
Latitude E6430 ATG
Latitude E6430s
Latitude E6440
Latitude E6520
Latitude E6530
Latitude E6540
Latitude E7240
Latitude E7440
Latitude ST
Latitude XT3
Tech Specs
Quick Specs
Product Type
Port replicator
Device Type
Port replicator
Dimensions (WxDxH)
20 cm x 17 cm x 5.36 cm
Weight
780 g
Power
130 Watt
Power
Power adapter - external 130 Watt
Designed For
Latitude E5430, E5530, E6230, E6330, E6430, E6430 ATG, E6430S, E6530
Maximize your workspace with the Dell™ E-Port II Replicator. This E-Port Replicator gives you a comfortable work space where you can plug a keyboard, mouse and monitor to the port replicators and use your laptop like a desktop! Simplified connectivity facilitates a single interface to connect to your printer, monitor or other peripheral devices. This product is tested and validated with Dell Systems. It is supported by Dell Technical Support, when used with a Dell system.
Highlights:
USB 3.0
- Adds new faster USB 3.0 technology enabled by Intel in Ivy Bridge - Replace the 2 USB 2.0 connectors on the back with USB 3.0 - Platform must support USB 3.0 for it to be enabled on dock (otherwise port will support 2.0)
Display Port 1.2
- Adds the ability to daisy chain displays (4 displays via 1 connector) - Only enabled with discrete graphics on current generation of Latitude laptops
No BOIS/SW/HW impact on previous Latitude E-series laptops
