Key Model Specifications
 item  T30-01-07E
 Feature  Durable Design

Processor/Speed (MHz)

  Intel Mobile P4 1600 MHZ, 400MHz Front Bus, 512kb L2 Cache
 Display  14.1-inch TFT Active Matrix XGA Display, ATI Radeon 7500 Video

Hard disk size

 30GB Ultra DMA EIDE =30000mb

Memory (std/max) (MB)

  256 MB of 266mhz Fast DDR memory, expandable up to 512 MB

CD-ROM speed

  DVD drive internal
 Fax/Modem Speeds  Modem with 56 K V.90 technology and 10/100 Network card internal
 Multimedia  Sound Blaster compatible stereo sound with two speakers and a built-in microphone
 Wireless  internal Wireless
 Other  USB and IRDA Ports
 Weight  5.5 lbs
 Operating system  Microsoft Windows XP Professional
 Class type More info   07 Grade A- (A Minus ) Refurbished ( Cosmetics: Good, with moderate sign of usage  ) More info
 Warranty type More info  90 Days Warranty Parts & Labor including battery More info
 Options .
 Memory upgrade  More info  Upgrade to 512mb + $29
 Carry Cases More info  IC Gear Standard Nylon Case + $29
IBM Thinkpad refurbished used laptops

In the office, on the road and anywhere in between, IBM ThinkPad T Series notebooks are the perfect solution for frequent travelers requiring big functionality without a heavy load. Protected by a Titanium Composite cover, a high-resolution TFT display provides comfortable viewing and keeps spreadsheets and presentations looking great. IBM ThinkPad T30 notebooks pack even more power with Intel processor and, starting at just 2.2kg, mean you don't have to sacrifice performance for portability. With migration and uptime solutions, integrated wireless and security technologies and global IBM service and support, ThinkPad T30 notebooks make computing simpler and easier to manage.

The IBM ThinkPad T30 features the Intel Pentium 4 Mobile 1600MHz processor with 400MHz Front Bus Speed and 512kb L2 Cache, 256MB of 266MHz DDR memory expandable to 512MB and a Fast 30GB hard drive. Watch your favorite movies on the big screen with the S-Video Out port and the removable DVD drive,  The IBM ThinkPad T30 also utilizes the ATI Mobility Radeon 7500 video with the 14.1-inch XGA LCD and massive 16MB DDR Video memory for clear, crisp and beautiful graphics. The IBM ThinkPad T30 gives you a complete communications solution with, 56k modem and broadband-ready 10/100Mbps NIC, and the Latest operating systems from Microsoft, The Windows XP Professional operating system. The ThinkPad T30 is a complete and affordable portable solution!
 Front Side View
 1. Screen enclosure
2. Display panel :
3. LED Status display .
4. Volume Control : .
5. ThinkPad Buttons :
 one-button access to information you need, along with ThinkPad portals for mobile solutions, service, support, and more.
6. TrackPoint IV :
7. Mouse & Scroll Button :
Press-to-Select and Release-to-Select features allow tapping of the TrackPoint pointing device to speed icon launches and reduce keystrokes.
8. UltraBay 2000 :

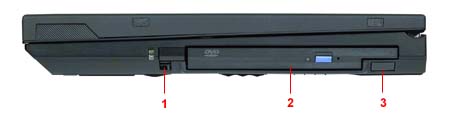

 Right Side View
 1. Bay release button
1.  UltraBay 2000 (DVD Drive)
With the Ultrabay 2000, fast and easy hot- and warm-swapping of many components gives you the flexibility to configure the system.
3. Infrared port

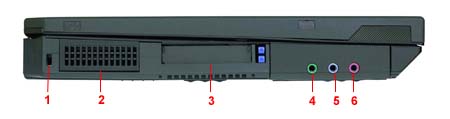

     Left Side View
 1. Security Lock slot :
2. Cooling vent
3. 2PC Card slots :
4. Headphone jack :
5. Line in
6. Microphone jack :
   Rear Side View
 1. Serial port
2. Parallel port :
3. External Display port :
4. RJ-11 Modem port :
5. RJ-45 LAN port :
6. 2 USB Ports
7. S-Video out
8. AC jack :

The ThinkPad T30 features:

  • Intel(R) Mobile Pentium(R) 4 processor at 1600 MHz featuring Intel(R) SpeedStep(TM) technology for both maximum and battery-optimized performance

  • Sleek profile and light weight

  • Microsoft Windows XP Professional

  • integrated wirelless B

  • Easy one-button access to information on your system via portals to the Web with the new ThinkPad button

  • 400 MHz front-side system bus with 266 MHz memory modules

  • 256 MB of DDR memory is standard

  • 30.0GB EIDE hard disk drive (HDD)

  • Integrated Mini-PCI V.90 modem and 10/100 Ethernet LAN connection

  • Brilliant display 358.1-mm (14.1-in) TFT display with 1024 x 768 resolution

  • Enhanced graphics enabling multiple monitor(4) support

  • DVD drive

  • Many optional features to enhance flexibility and function

  • Advanced system manageability

  • S-Video out port (TV out)

Latest processor technology

  • The new ThinkPad T30 features the Intel(R) Mobile Pentium(R) 4 processor at 1600 MHz plus 512 KB of L2 cache, Battery-optimized performance mode for balance between performance and battery life when operating on battery power. In this mode the MHz speed is reduced to approximately 80% of the maximum performance with approximately 50% of the power consumption to conserve battery power.

Operating system

  • Preinstalled Microsoft Windows XP Professional

Communications

  • Mini-PCI V.90 56Kb modem

  • Intel Mini-PCI 100/10 Ethernet Combination card

LCD TFT display and Video Modes -- T30

  • 358.1-mm (14.1-in) TFT display with 1024 x 768 resolution.

  • Laptop internal screen resolution 1024X768

  • External resolution 166x1200, Colors 16,000,000

Keyboard and TrackPoint with enhanced features
The keyboard has the familiar layout of a ThinkPad system with function keys that allow you to quickly access system functions such as power-management control. the mouse systems now give you the option of using The TrackPoint with enhanced features incorporates the Press-to-Select and Release-to-Select function, Just tap the TrackPoint to speed icon launches and help reduce keystrokes. The new programmable center button enables fast scrolling of Web sites and documents or fast panning across wide spreadsheets. Switch to the innovative magnifying glass feature to enlarge screen views in any application.

Memory
The system has 256 MB of 266MHz memory standard and can be configured for up to 1024 MB of addressable memory.

Storage
the customer-removable HDD 30.0 standard.

Drives
a DVD drive is installed in the system.

Audio
Full-duplex audio on the system board and the integrated microphone allow voice annotation and audio. The system is equipped with audio in/out jacks for stereo speakers, headphone, or external microphone. The system supports Sound Blaster audio applications.

Other features
The ThinkPad T30 systems include these ports:

  • Enhanced parallel (ECP/EPP), Serial (9-pin 16550A), External display , Microphone , Line in, Headphone, 2USB port, RJ 11, RJ 45, S Video-out, Infrared, Expansion bus

 Processor
  • Dual-mode, high-performance Mobile Intel(R) Mobile Pentium(R) 4 Processor-M at 1.6GHz
  • Enhanced Intel SpeedStep(TM) technology
  • 512 KB onboard L2 cache memory
  • 400MHz front side bus

 Memory
  • 64-bit Double Data Rate (DDR) non-parity SDRAM memory
  • PC2100 at 266MHz
  • Two 200 pin SO-DIMM memory slots, slot1 is pre-populated with 256MB
  • Supports maximum memory up to 512MB

 Optical drive
  • 8X maximum read speed of DVD media
  • Bootable

 Hard disk drive (HDD) features
  •  Standard  20GB, 12.5 mm or 9.5mm
  • Supports one additional HDD which can be used concurrently to offer expanded storage utilizing the Ultrabay 2000
  • S.M.A.R.T technology to issue an alert if a hardware failure is pending
  • ATA Bus Interface
  • 4200 or 5400 rpm

 Audio
  • AD1881A AC97 codec
  • Sound Blaster Pro compatible
  • Speaker technology
    • 2 speakers , 1 Watt speakers
  • Volume up, down, and mute buttons
  • Three audio jacks:
    • One for external stereo speakers or headphone (3.5mm)
    • One for an external microphone (3.5mm)
    • One for line-in (3.5mm)

 Keyboard
  • 87 key keyboard with imbedded numeric keypad and integrated TrackPoint(TM) with enhanced features
  • 90 DBCS key keyboard with imbedded numeric keypad and integrated TrackPoint(TM) with enhanced features for Japanese systems
  • Imbedded numeric keypad
  • The keyboard has a Fn key which is a special key and is located in the lower left corner. The Fn key allows the user to instantly activate the following operational features by pressing the Fn key and a designated function key: - Standby/Suspend/Hibernation - Switching between Display devices - Power management mode
  • ThinkPad button, allowing one-touch entry into Access ThinkPad
  • ThinkLight which illuminates the keyboard in low light conditions. (Activate via Fn+PgUp key)

 Mouse
  • All systems come with TrackPoint(R) with Press-to-Select, Internet scroll, and magnifying glass features for accurate and convenient control

 Infared (IR)
  • IR transceiver for wireless file and data transfer and printing.
  • Speeds up to 4Mbps.
  • Compatible with the Infrared Data Association (IrDA) IR data link specification
  • located on right side of system

 Modem
  • Selected models as either a communication daughter card (CDC) or as a Mini PCI card combo card with Intel wireless
  • K56Flex v.92

 Network
  • 10/100 Ethernet installed on the system board
  • internal wireless B card

 Bays
  • One, integrated, easy-loading modular Ultrabay(TM) 2000 Plus
  • One Mini PCI IIIb slot
  • Two communications daughter card slots

 External ports
  • Two USB (Both ports are located in rear) version 1.1
  • One parallel (EPP, ECP) compatible
  • One DB-15 external display
  • One 9-pin serial
  • Additional connector supports the optional Port Replicator and dock
  • Audio line in, audio line out, and microphone in ports
  • S-Video out
  • Built-in RJ-11 and RJ-45 connectors for telephony and LAN connections

 PC Card
  • Conforms to the PC Card Standard 95
  • The Type III slot can accommodate two Type I or two Type II, or one Type III PC card
  • Both 16-bit and 32-bit cards are supported.
  • PCMCIA 2.1 standard

 Physical specificaitons
System:
  • Width: 304mm (12.0in)
  • Depth: 250mm (9.8in)
  • Height: 36.6mm (1.4in)
  • Travel weight will vary by model and the range is 2.22kg (4.9lb) to 2.33KG (5.1lb) with travel bezel
  • Configured system weight will vary by model and the range is 2.42kg (5.33lb) to 2.57kg (5.67lb).

Accessories:

  • Li-Ion battery pack: 325g (0.72lb)
  • FDD: 210g (0.45lb)
  • AC adapter (2-pin or 3-pin): 360g (0.795lb)
  • Power cord for ac adapter: 90g (0.19lb)
  • DVD drive: 345g (0.76lb)

 AC Adapter
  • AC adapter: This ac-to-dc converter supplies the necessary power to the computer. The ac adapter also charges the battery pack when it is installed in the computer.
  • Universal AC adapter (72 W):  Input is 100/240V AC, 1.4/0.7A, 50/60 Hz, Output is 16V DC, 4.5A

 Battery
  • The battery pack is an internal power source to the computer when the ac adapter is not available. The battery pack is rechargeable and is charged using the ac adapter with the system.
  • A six-cell Li-Ion battery pack is shipped with the system.
  • A different Li-Ion battery pack fits into the Ultrabay Plus so that two batteries can be installed to increase battery operating time.
  • Approximate operation and charging hours are:
    • Power off/suspend charging 2.5 hr
    • Charging during operation 2.5 to 6.0 hr
    • Battery operation  2.3 hr
      • 2 hours and 30 minutes for systems with 802.11b wireless LAN

 Security System
  • Security Chip
  • Locking device in the IBM security slot provides physical security.
  • The IBM Embedded Security Subsystem (TCPA compliant) provides for authentication and encryption of data communications. The integrated 802.11b wireless lets you connect to a LAN without wires or cables. To connect to the Internet, the optional IBM High Rate Wireless Access Point 500 and an Internet phone number are required.

 Password
  • A Power-on password(POP) protects the system from unauthorized use. If a POP is set, the password prompt appears:
    • Each time the system is turned on
    • When the system is returned to normal operation from suspend mode
  • A Supervisor Password provides a higher level of security than the POP. The Supervisor Password protects the system functions from being used by unauthorized users,and protects the hardware configuration from unauthorized modification. The Supervisor Password prompt appears:
    • When the BIOS setup screen is accessed.
  • A HDD Password (HDP) protects HDD data from unauthorized users. Once HDP is set, data on the HDD cannot be accessed without the correct HDP. Because the HDP is stored in the HDD, the data remains protected even if the HDD is removed to another system. The HDP password prompt appears:
    • Each time the system is turned on

 Operating system
The following operating systems are supported on the IBM ThinkPad T30 systems:
  • Microsoft Windows 98
  • Microsoft Windows 98 Second Edition
  • Microsoft Windows Me
  • Microsoft Windows NT Workstation 4.0 - not supported on models 2366-45x and 85x
  • Microsoft Windows NT Workstation 4.0 Japanese - not supported on models 2366-45x and 85x
  • Microsoft Windows 2000
  • Microsoft Windows XP Professional
  • Microsoft Windows XP Home
  • OS/2 Warp Convenience Package 2 V4.52 with FixPak XR_F001, or later
  • OS/2 Warp Convenience Package 1 V4.51 with FixPak XR_C002, or later
  • OS/2 Warp 4.0 with FixPak XR_M016 or later and Device Driver FixPak XR_D002 or later

 Floppy drive
  • Only included with some systems (as advertised)
  • Available via Ultrabay 2000 or USB

 Display
Depending on model:
  • 358.1-mm (14.1-in) TFT display with 1024 x 768 resolution. (All displays are measured diagonally.)

 Graphic Controller
  • ATI Mobility Radeon 7500 chipset
  • AGP 4X
  • 16MB DDR-SDRAM
  • 166MHz bus
  • Digital Video Input (DVI) for digital displays is supported through the optional IBM ThinkPad Dock or ThinkPad Port Replicator.

Top

Add a Port Replicator for only $29.00
The new ThinkPad Port Replicator provides easy cable management and ThinkPad port pass-through capability with one easy snap for ThinkPad A, X and T Series users. You can reduce the inconvenience of individually connecting to multiple devices, and get true desktop like convenience. The ThinkPad Port Replicator offers pass-through connection to RJ11, RJ45, serial, parallel, keyboard, mouse, floppy disk drive, monitor, USB, DVI, line-in, line-out, and place for optional cable lock.

This convenient and efficient Port Replicator gives you the best of both worlds. You maintain the mobility afforded by your ThinkPad notebook while allowing quick and easy access to desktop peripherals at the office. The cable locking feature provides an added security benefit by allowing users to lock both the ThinkPad Port and ThinkPad system.
Weight 1.3 lbs, Height 1.8 inches, Width 10.6 inches, Depth 3.6 inches

IC Gear Standard Nylon Carry Case for $29.00

Soft Polyester, outer shell, Front compartment for accessories, Mid compartment for documents and laptop computer, Extra zipper enclosed compartment, Expandable!
Dimensions: L39 x W29 x H15 (cm
